이 책의 분량과 형식은 어떻게 되나요?

전체 16쪽 분량의 온라인 플립북입니다. 별도 프로그램을 설치하지 않고 브라우저에서 바로 넘겨 볼 수 있습니다.

이 소개의 내용은 어디에서 가져왔나요?

출처: 이북나라 전자책 『토니텍』 2쪽 · 4쪽 · 6쪽 · 9쪽 · 12쪽 · 14쪽. 원문에 없는 주제·저자·발행일은 넣지 않았습니다.

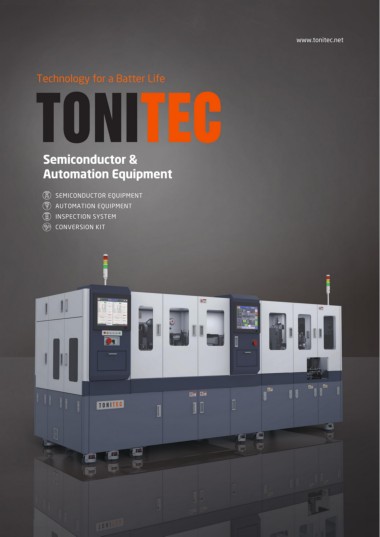

토니텍 | 이북나라 전자책

본문 2쪽

is a business system optimized for all processes of manufacturing specialized with customizing design, assembly, programming and set-up, ensuring product quality and delivery time to meet customer's needs. We are doing our best to provide the best value and service to our customers by continuously researching and developing for the best quality and trust based on the best technology, talented people, and abundant experience to meet the needs of the rapidly changing market. Business Area Semiconductor equipment Based on over 30 years experienced know-how, Tonitec Co., Ltd.

출처: 이 전자책 2쪽

본문 4쪽

SEMICONDUCTOR EQUIPMENT 반도체 장비 LASER SAW AND PLACEMENT SYSTEM ● Model : TC-LC-15 ● 1 Source 2 Head : 2 Source 4 Head of Laser ● Input device : Touch screen & Button ● Applicable Strip size : 100x300mm ● Live-bug (Flipper) ● High Speed Package Picker ● Vision inspections - 1st : Package type : orientation - 2nd : PRS - 3rd : Top Inspection - 4th : Bottom Inspection (Option for 6 Sides Inspection) ● Unit Sorting after inspection ● Unloading to Tray / Tube / Bin ● Input Power : 220V, 3PHASE, 50/60Hz ● Input Pneumatic : 5kgf/cm2 CAM PRESS TRIM/FORM/SINGULATION SYSTEM ● Model : TC-TFS-90 ●…

출처: 이 전자책 4쪽

본문 6쪽

SEMICONDUCTOR EQUIPMENT 반도체 장비 AUTO STRIP/WAFER MOUNT SYSTEM ● Model : TC-AWM-45 ● Applicable with UV & Blue film ● Input device : Touch screen & Button ● Applicable frame Ring size : 6”/8”/12” ● Barcode label attachment ● PC or PLC control ● Option for heating on Chuck table ● Ionizer ● Film Cleaning function ● Vision inspection for type / orientation ● Cassette Magazine loading ● Cassette Magazine Unloading ● Input Power : 220V, 3PHASE, 50/60Hz ● Input Pneumatic : 5kgf/cm2 SEMI AUTO WAFER/STRIP MOUNT SYSTEM ● Model : TC-SWM-30 ● Control Unit : PLC ● Input device : Touch screen & Button ●…

출처: 이 전자책 6쪽

본문 9쪽

SEMICONDUCTOR AUTOMATION INSPECTION CONVERSION EQUIPMENT EQUIPMENT SYSTEM KIT SEMICONDUCTOR EQUIPMENT AUTOMATION EQUIPMENT 자동화 장비 AUTO ULTRASONIC WELDING SYSTEM ● Model : TC-USW-1200 ● Applicable for Plastic product ● Rotary feeding ● Tact time : 3sec. ● PLC control ● Sorting for Good / Reject part ● Loading from Parts Feeder ● Unloading to Bin ● Input Power : 220V, 3PHASE, 50/60Hz ● Input Pneumatic : 5kgf/cm2 AUTO FRAME LOADER

출처: 이 전자책 9쪽

본문 12쪽

INSPECITON SYSTEM 검사 장비 VISION INSPECTION SYSTEM ● Model : TC-VI-120 ● Flipping ● Applicable : Max. 120x300mm PCB ● Utility requirement ● Cleaning : By Air blow & Tape - Electrical power : 220V, 50/60Hz, 3PHASE ● Stack Loader / Bin or output for Inline - CDA ( compressed air ) : 5 kgf/cm2 ● 18 Axis of servo motor driven - Air consumption : 1200l/min ● Good / Rework / Reject sorting ● Foot print : 2450(L)x1700(W)x1800(H)mm ● PC based control

출처: 이 전자책 12쪽

본문 14쪽

MODULES for EQUIPMENT 기존장비의 노후로 인한 MODULE, CONVERSION KIT 교체시 고객의 요구에 맞는 리버스 디자인을 통한 설계의 재해석으로 생산성 및 편의성을 향상시켜드립니다. 반도체, 자동화 장비 및 검사 장비에 장착된 구성품들을 토니텍 만의 노하우로 손쉽게 교체/공급받으실 수 있습니다. In case of replacing older modules and conversion kits, we will improve productivity and convenience by reinterpreting the design through a reverse design that meets the customer’s needs. Components installed in semiconductors, automation equipment and inspection equipment can be easily supplied and replaced with TONITEC’s unique know-how.

출처: 이 전자책 14쪽

토니텍

본문에서 살펴볼 내용
