Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 16 Internet Web Service >> www.lvs.co.kr 17

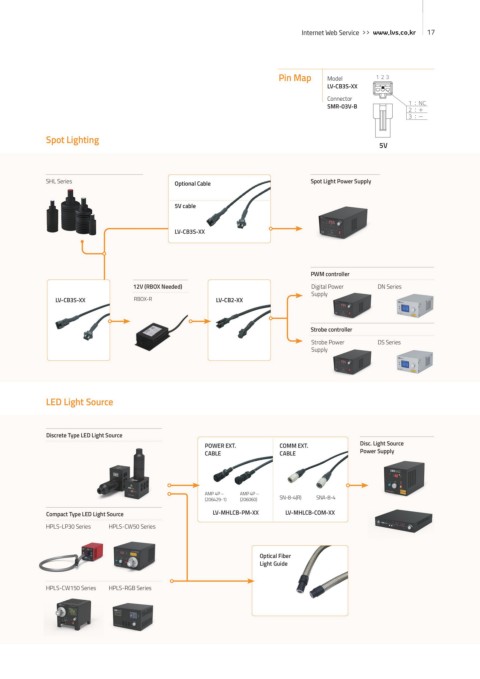

System Pin Map Model 1 2 Model 1 2 3 Pin Map Model 1 2 3

LV-CB3-XX
LV-CB2-XX
LV-CB3S-XX
Flow Connector 1 : Connector 1 : Connector 1 : NC
SMR-02V-B
2 : SMR-03V-B 2 : NC SMR-03V-B 2 :
3 : 3 :
Standard Lighting Spot Lighting 5V
12V 24V 5V
12V
24V

DRT/DRF Series DLA2/DL Series DB/DB2 Series Optional Cable PWM controller SHL Series Optional Cable Spot Light Power Supply
Digital Power DN Series
12V cable Supply 5V cable

LV-CB3S-XX

IFS Series IFRK Series ILA Series
LV-CB2-XX

PWM controller
24V cable 12V (RBOX Needed) Digital Power DN Series
Supply
LV-CB3S-XX RBOX-R LV-CB2-XX
ICFV Series IDM Series DDM Series Strobe controller
Strobe Power DS Series
Supply Strobe controller
LV-CB3-XX Strobe Power DS Series
Supply

HLS Series Lighting LED Light Source

Discrete Type LED Light Source
HLS Series HLS1.5 Series PWM controller Constant Current controller POWER EXT. COMM EXT. Disc. Light Source
EN Controller ET Controller CABLE CABLE Power Supply

AMP 4P – AMP 4P –
(206429-1) (206060) SN-8-4(R) SNA-8-4
LV-CB3-XX
HLS1.5 Series Compact Type LED Light Source LV-MHLCB-PM-XX LV-MHLCB-COM-XX
HPLS-LP30 Series HPLS-CW50 Series

HLS3 Series Optical Fiber
Light Guide
AMP connector HLS3 Power Supply PWR Controller
9P or 14P or 19P
AMP connector HPLS-CW150 Series HPLS-RGB Series
14P or 19P
HLS3 Series LV-AMPXXF(M)-XX
