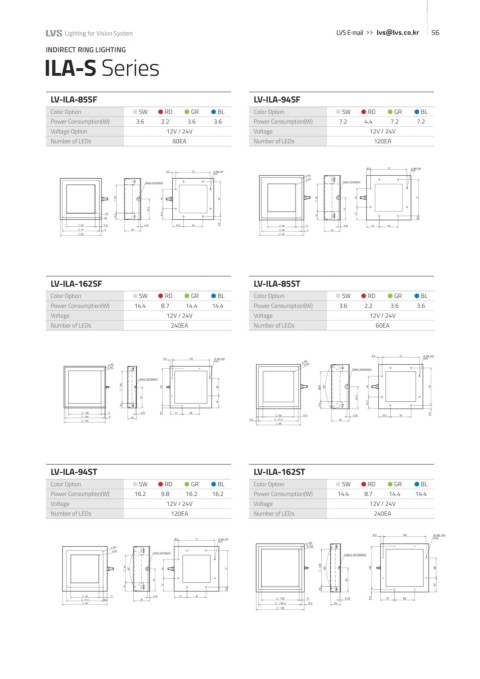

INDIRECT RING LIGHTING
ILA-S Series MEMO DLA2 / DL

LV-ILA-85SF LV-ILA-94SF

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 3.6 2.2 3.6 3.6 Power Consumption(W) 7.2 4.4 7.2 7.2
Voltage Option 12V / 24V Voltage 12V / 24V
Number of LEDs 60EA Number of LEDs 120EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-ILA-162SF LV-ILA-85ST
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 14.4 8.7 14.4 14.4 Power Consumption(W) 3.6 2.2 3.6 3.6 DDM
Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 240EA Number of LEDs 60EA
ICFV / ICFV2

IFD

SHL / SVL

UV / IR

LV-ILA-94ST LV-ILA-162ST
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 16.2 9.8 16.2 16.2 Power Consumption(W) 14.4 8.7 14.4 14.4 HLS
Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 120EA Number of LEDs 240EA
