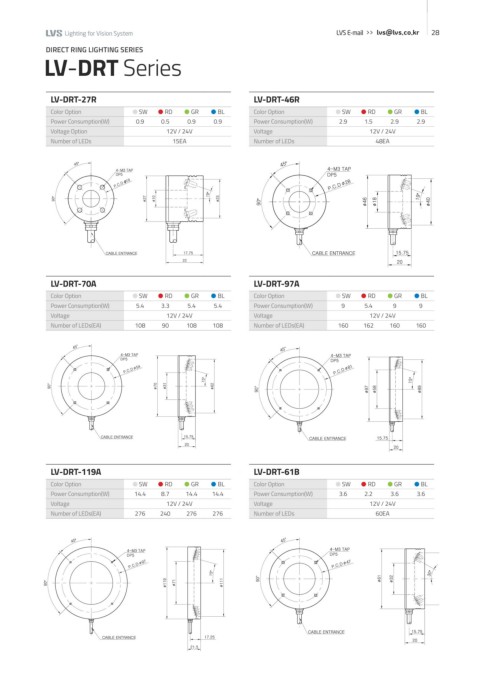

DIRECT RING LIGHTING SERIES DIRECT RING LIGHTING SERIES
LV-DRT Series LV-DRT Series
DLA2 / DL

LV-DRT-27R LV-DRT-46R LV-DRT-81B LV-DRT-101B

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 0.9 0.5 0.9 0.9 Power Consumption(W) 2.9 1.5 2.9 2.9 Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 7.2 4.4 7.2 7.2
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 15EA Number of LEDs 48EA Number of LEDs 90EA Number of LEDs 120EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-DRT-70A LV-DRT-97A LV-DRT-122B LV-DRT-150B
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 9 5.4 9 9 Power Consumption(W) 12.6 7.6 12.6 12.6 Power Consumption(W) 16.2 9.8 16.2 16.2 DDM
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs(EA) 108 90 108 108 Number of LEDs(EA) 160 162 160 160 Number of LEDs 210EA Number of LEDs 270EA
ICFV / ICFV2

IFD

SHL / SVL

UV / IR

LV-DRT-119A LV-DRT-61B LV-DRT-176B LV-DRT-79C
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 14.4 8.7 14.4 14.4 Power Consumption(W) 3.6 2.2 3.6 3.6 Power Consumption(W) 25.2 15.2 25.2 25.2 Power Consumption(W) 5.4 3.3 5.4 5.4 HLS
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs(EA) 276 240 276 276 Number of LEDs 60EA Number of LEDs 420EA Number of LEDs 90EA
