INDIRECT BACK LIGHTING INDIRECT BACK LIGHTING

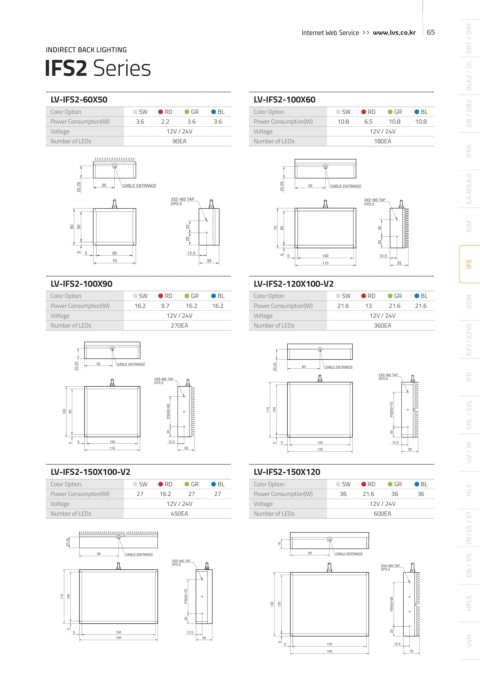

IFS Series IFS2 Series
DLA2 / DL

LV-IFS-27X27-FL LV-IFS-45X45-FL LV-IFS2-60X50 LV-IFS2-100X60

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 1 0.8 1 1 Power Consumption(W) 2.2 1.1 2.2 2.2 Power Consumption(W) 3.6 2.2 3.6 3.6 Power Consumption(W) 10.8 6.5 10.8 10.8
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 16EA Number of LEDs 36EA Number of LEDs 90EA Number of LEDs 180EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-IFS-64X64 LV-IFS-80X80-V4 LV-IFS2-100X90 LV-IFS2-120X100-V2
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 4.9 2.5 4.9 4.9 Power Consumption(W) 8.7 4.4 8.7 8.7 Power Consumption(W) 16.2 9.7 16.2 16.2 Power Consumption(W) 21.6 13 21.6 21.6 DDM
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 81EA Number of LEDs 144EA Number of LEDs 270EA Number of LEDs 360EA
ICFV / ICFV2

IFD

SHL / SVL

UV / IR

LV-IFS2-150X100-V2 LV-IFS2-150X120
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 27 16.2 27 27 Power Consumption(W) 36 21.6 36 36 HLS
Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 450EA Number of LEDs 600EA
