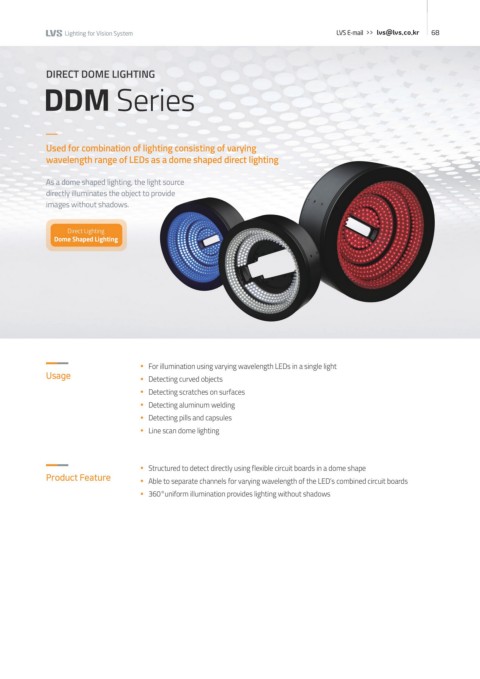

DIRECT DOME LIGHTING DLA2 / DL
DDM Series

DB / DB2

Used for combination of lighting consisting of varying IFRK
wavelength range of LEDs as a dome shaped direct lighting

As a dome shaped lighting, the light source
directly illuminates the object to provide ILA-R/ILA-S
images without shadows.

Direct Lighting IDM
Dome Shaped Lighting

IFS
Individual imaging of different angles
Sample image with DDM illumination

DDM
DDM series >>>

ICFV / ICFV2

Image 1
● For illumination using varying wavelength LEDs in a single light
Usage ● Detecting curved objects IFD
● Detecting scratches on surfaces
Using 1 to 3 images
● Detecting aluminum welding Optimal image combination
● Detecting pills and capsules SHL / SVL
Image 2 Image 3
● Line scan dome lighting
● Usage - Detecting curved objects - Detecting pills and capsules
- Detecting scratches on surfaces - Line scan dome lighting
- Detecting aluminum welding UV / IR
● Structured to detect directly using flexible circuit boards in a dome shape ● Features 360°uniform illumination provides lighting without shadows
Product Feature ● Able to separate channels for varying wavelength of the LED’s combined circuit boards

● 360°uniform illumination provides lighting without shadows DDM series HLS
Illumination Structure
CCD Camera
CCD 카메라
EN / ES / ET

This Product
본제품
DN / DS
Through the light guide
plate, And uniformly diffused
light is emitted from the
light source. HPLS
LED
LED
Object
물체
