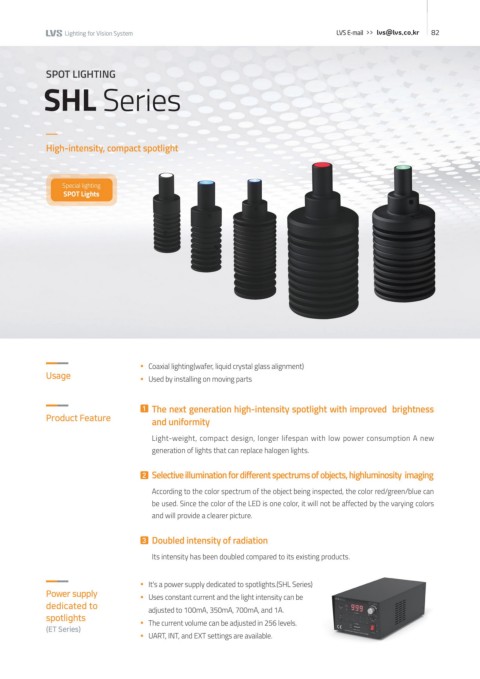

SPOT LIGHTING DLA2 / DL
SHL Series

DB / DB2

High-intensity, compact spotlight
IFRK

Special lighting
SPOT Lights ILA-R/ILA-S

IDM

IFS

DDM

ICFV / ICFV2

Sample image
● Coaxial lighting(wafer, liquid crystal glass alignment)
Usage ● Used by installing on moving parts SHL series >>> IFD

1 The next generation high-intensity spotlight with improved brightness
Product Feature and uniformity SHL / SVL

Light-weight, compact design, longer lifespan with low power consumption A new Original image RED WHITH
generation of lights that can replace halogen lights.
● Usage Coaxial lighting(wafer, liquid crystal glass alignment) UV / IR
● Features Convenient installation and efficient for moving inspection compared to the optical fiber
2 Selective illumination for different spectrums of objects, highluminosity imaging light guides.
According to the color spectrum of the object being inspected, the color red/green/blue can HLS
be used. Since the color of the LED is one color, it will not be affected by the varying colors Illumination Structure SHL Series
and will provide a clearer picture.

3 Doubled intensity of radiation CCD Camera EN / ES / ET
CCD 카메라
Its intensity has been doubled compared to its existing products. This Product
본제품
Planar LEDs on the same DN / DS
● It's a power supply dedicated to spotlights.(SHL Series) substrate are arranged
Power supply ● Uses constant current and the light intensity can be at a high density, and the
dedicated to adjusted to 100mA, 350mA, 700mA, and 1A. object is irradiated from an HPLS
spotlights ● The current volume can be adjusted in 256 levels. arbitrary angle
물체
(ET Series) Object
● UART, INT, and EXT settings are available.
