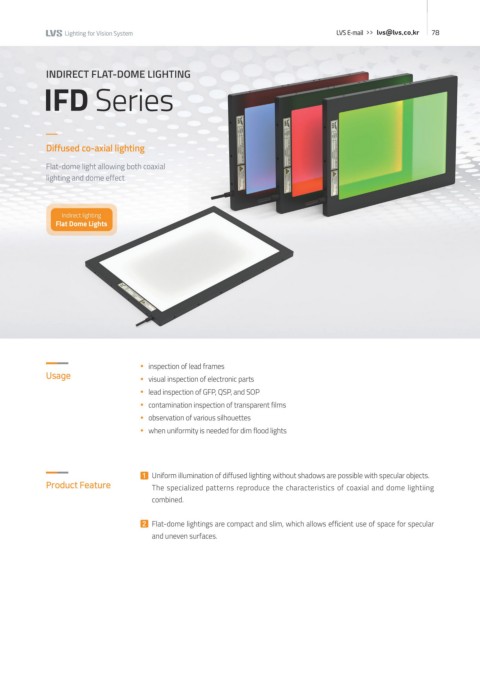

INDIRECT FLAT-DOME LIGHTING DLA2 / DL
IFD Series

DB / DB2

Diffused co-axial lighting
IFRK
Flat-dome light allowing both coaxial
lighting and dome effect
ILA-R/ILA-S

Indirect lighting
Flat Dome Lights
IDM

Original image IFD series DRT series IFS

Sample image
DDM
IFD Series >>>

ICFV / ICFV2
OCR inspection

● inspection of lead frames
Usage ● visual inspection of electronic parts IFD
● lead inspection of GFP, QSP, and SOP
● contamination inspection of transparent films
● observation of various silhouettes SHL / SVL
● when uniformity is needed for dim flood lights
OCR and contamination on coated surfaces
UV / IR
● Usage Lead frame, external dimensions, GFP/QSP/SOP curvature and transparent film inspections.
● Features Optimal for specular objects and diffused lighting inspections without causing shadows
1 Uniform illumination of diffused lighting without shadows are possible with specular objects.
Product Feature The specialized patterns reproduce the characteristics of coaxial and dome lightiing HLS

combined. Flat Dome
Illumination Structure
2 Flat-dome lightings are compact and slim, which allows efficient use of space for specular
CCD Camera EN / ES / ET
and uneven surfaces.

DN / DS

LED
This Product
HPLS

Object
UVH
