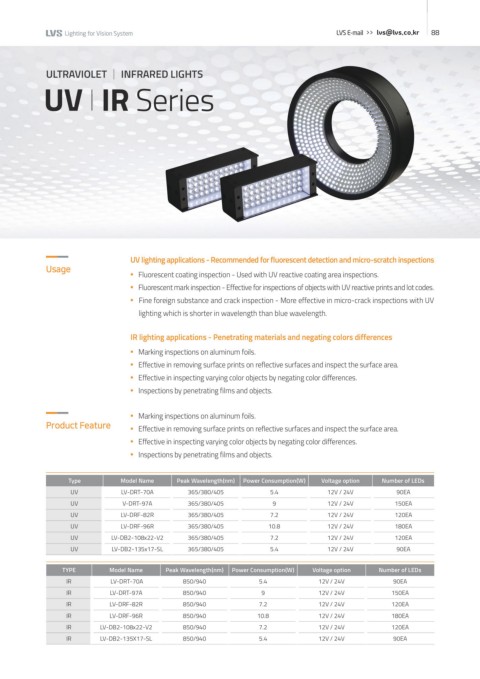

ULTRAVIOLET │ INFRARED LIGHTS ULTRAVIOLET │ INFRARED LIGHTS DLA2 / DL
UV IR Series UV IR Series
│
│
DB / DB2

IFRK
RING Light - UV RING Light - UV
Object
ILA-R/ILA-S

IDM

UV lighting applications - Recommended for fluorescent detection and micro-scratch inspections ● Fluorescent coating inspection image.
Usage ● Fluorescent coating inspection - Used with UV reactive coating area inspections. ● Effective in inspection of UV reactive coating. IFS

● Fluorescent mark inspection - Effective for inspections of objects with UV reactive prints and lot codes.
● Fine foreign substance and crack inspection - More effective in micro-crack inspections with UV DDM
lighting which is shorter in wavelength than blue wavelength. Indirect Ring Lights - WHITE Indirect Low-angle Ring Light - RED Direct Bar Light - IR
Object
IR lighting applications - Penetrating materials and negating colors differences ICFV / ICFV2

● Marking inspections on aluminum foils.
● Effective in removing surface prints on reflective surfaces and inspect the surface area.
● Effective in inspecting varying color objects by negating color differences. IFD
● Inspections by penetrating films and objects.

● Marking inspections on aluminum foils. SHL / SVL
Product Feature ● Effective in removing surface prints on reflective surfaces and inspect the surface area. ● Above image has been taken with a camera with IR wavelength range.
● Using a white light shows all the markings and letterings.
● Effective in inspecting varying color objects by negating color differences.
● Using the IR light can remove the markings and emphasize the bar code.
● Inspections by penetrating films and objects. UV / IR

Type Model Name Peak Wavelength(nm) Power Consumption(W) Voltage option Number of LEDs
UV LV-DRT-70A 365/380/405 5.4 12V / 24V 90EA Object Coaxial vertical Light - BLUE Coaxial vertical Light - RED Coaxial vertical Light - IR HLS
UV V-DRT-97A 365/380/405 9 12V / 24V 150EA
UV LV-DRF-82R 365/380/405 7.2 12V / 24V 120EA
UV LV-DRF-96R 365/380/405 10.8 12V / 24V 180EA EN / ES / ET
UV LV-DB2-108x22-V2 365/380/405 7.2 12V / 24V 120EA
UV LV-DB2-135x17-SL 365/380/405 5.4 12V / 24V 90EA
DN / DS
TYPE Model Name Peak Wavelength(nm) Power Consumption(W) Voltage option Number of LEDs
IR LV-DRT-70A 850/940 5.4 12V / 24V 90EA
IR LV-DRT-97A 850/940 9 12V / 24V 150EA ● Images have been taken using various wavelengths(colors).
IR LV-DRF-82R 850/940 7.2 12V / 24V 120EA ● Depending on the inspection conditions of the same object, various wavelengths can be selected. HPLS
IR LV-DRF-96R 850/940 10.8 12V / 24V 180EA
IR LV-DB2-108x22-V2 850/940 7.2 12V / 24V 120EA
IR LV-DB2-135X17-SL 850/940 5.4 12V / 24V 90EA UVH
