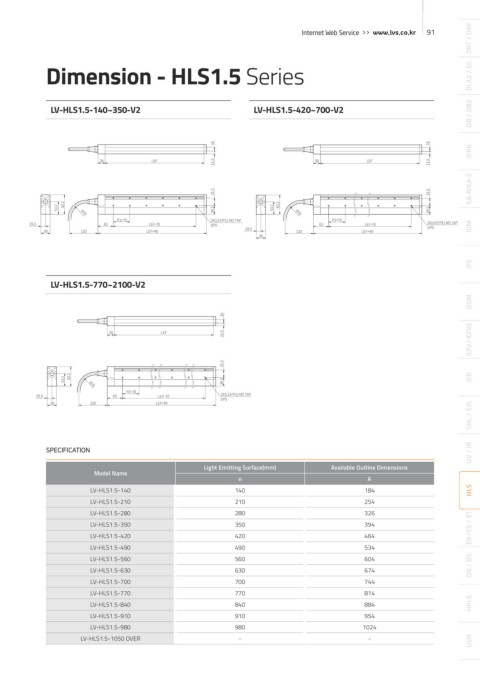

LIGHTING FOR VISION SYSTEM Dimension - HLS1.5 Series DLA2 / DL
Line Scan Camera LV-HLS1.5-140~350-V2 LV-HLS1.5-420~700-V2
Illumination DB / DB2
16 16
IFRK
30 LEF 11.5 30 LEF 11.5
PWM, Constant Current Illumination
31.5 31.5 ILA-R/ILA-S
53.2 82.2 R70 36.5 53.2 82.2 R70 36.5
P1=70 2X(LEF/P1)-M5 TAP P1=70
19.5 65 LEF-70 DP5 65 LEF-70 2X(LEF/P1)-M5 TAP IDM
CONSTANT CURRENT 39 120 LEF+40 19.5 120 LEF+40 DP5
CONTROLLER 39
IFS
LV-HLS1.5-770~2100-V2
HLS1.5 SERIES DDM
16
ICFV / ICFV2
30 LEF 11.5
31.5
LVS-HLS1.5 ● Special Diffuser is used for optimal uniformity
Series ● R, G, B, W colors available(Inquiry required for other wavelengths) 53.2 82.2 R70 36.5 IFD
P1=70
2X(LEF/P1)-M5 TAP
19.5 65 LEF-70
DP5
SHL / SVL
39 120 LEF+40
SPECIFICATION
Model Name LVS-HLS1.5 Series
Average Luminance (Mid.) 300,000 Lux (White) SPECIFICATION UV / IR
Color R, G, B, W Light Emitting Surface(mm) Available Outline Dimensions
Model Name
Light Emitting Surface (70mm intervals) Minimal light emitting surface 140mm (inquire for extra long sizes) n A
Wattage (max brightness) 11W per 70mm interval, (White) LV-HLS1.5-140 140 184 HLS
LV-HLS1.5-210 210 254
770mm and above : H67 x W39 x L (LEF + 80mm)
LV-HLS1.5-280 280 326
Dimensions 420~700mm : H67 x W39 x L (LEF + 44mm) LV-HLS1.5-350 350 394
140~350mm : H67 x W39 x L (LEF + 44mm) LV-HLS1.5-420 420 464 EN / ES / ET
Operating Environment Temperature 0℃ ~ 30℃ , Humidity 20 ~ 80% RH (with no condensation) LV-HLS1.5-490 490 534
Storage Environment Temperature -15℃ ~ 60℃ , Humidity 20 ~ 85% RH (with no condensation) LV-HLS1.5-560 560 604 DN / DS
LV-HLS1.5-630 630 674
Apparatus Aluminim
LV-HLS1.5-700 700 744
Extension Cable 5m and under suggested(inquire for longer lengths) LV-HLS1.5-770 770 814
Must use compressed air cooling LV-HLS1.5-840 840 884
Cooling * Above 90~100psi(6~7 bar) / air flow rate above 150L/min HPLS
LV-HLS1.5-910 910 954
Controller LVS-ET Series LV-HLS1.5-980 980 1024
▶ LEF : light emitting surface LV-HLS1.5-1050 OVER - - UVH
