Page 116 - LVS2023

Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 116 Internet Web Service >> www.lvs.co.kr 117

LVS LVS

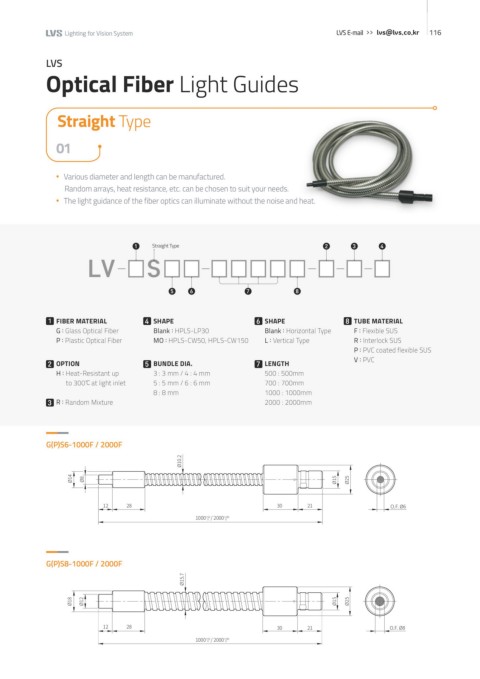

Optical Fiber Light Guides Optical Fiber Light Guides

Straight Type Branch Type

01 02

● Various diameter and length can be manufactured. ● Various diameter and length can be manufactured.
Random arrays, heat resistance, etc. can be chosen to suit your needs. ● It can be used when you need light from various directions.
● The light guidance of the fiber optics can illuminate without the noise and heat.

1 Straight Type 2 3 4 1 2 Branch Type 3 4 5
LV S LV B

5 6 7 8 6 7 8 9

1 FIBER MATERIAL 4 SHAPE 6 SHAPE 8 TUBE MATERIAL 1 FIBER MATERIAL 3 OPTION 6 BUNDLE DIA. 8 LENGTH
G : Glass Optical Fiber Blank : HPLS-LP30 Blank : Horizontal Type F : Flexible SUS G : Glass Optical Fiber H : Heat-Resistant up 3 : 3 mm / 4 : 4 mm 500 : 500mm
P : Plastic Optical Fiber MO : HPLS-CW50, HPLS-CW150 L : Vertical Type R : Interlock SUS P : Plastic Optical Fiber to 300℃ at light inlet 5 : 5 mm / 6 : 6 mm 1000 : 1000mm
P : PVC coated flexible SUS 4 R : Random Mixture 2000 : 2000mm
2 OPTION 5 BUNDLE DIA. 7 LENGTH V : PVC
H : Heat-Resistant up 3 : 3 mm / 4 : 4 mm 500 : 500mm 2 NUMBER OF BRANCH 5 SHAPE 7 SHAPE 9 TUBE MATERIAL
to 300℃ at light inlet 5 : 5 mm / 6 : 6 mm 700 : 700mm Blank : Bifurcated type Blank : HPLS-LP30 Blank : Horizontal Type F : Flexible SUS
8 : 8 mm 1000 : 1000mm 3 : Trifurcated type MO : HPLS-CW50 L : Vertical Type R : Interlock SUS
3 R : Random Mixture 2000 : 2000mm 4 : Fourfold type HPLS-CW150 P : PVC coated flexible SUS

G(P)S6-1000F / 2000F G(P)B6-
1000F / 2000F
Ø10.2

Ø14 Ø8 Ø15 Ø25 Ø10.2 Ø15 Ø32
Ø14 Ø8 O.F. Ø8.5
12 28 30 21 O.F. Ø6
O.F. Ø6 12 28 48 21
+50 +100
1000 0 / 2000 0 +50 +100
1000 0 / 2000 0

G(P)S8-1000F / 2000F G(P)4B5
-1000F / 2000F
Ø15.7
Ø15 Ø32
Ø18 Ø12 Ø15 Ø25
Ø14 Ø8 48 21 O.F. Ø10
12 28 30 21 O.F. Ø8 O.F. Ø5 12 28 Ø10.2
+50 +100 +50 +100
1000 0 / 2000 0 1000 0 / 2000 0
