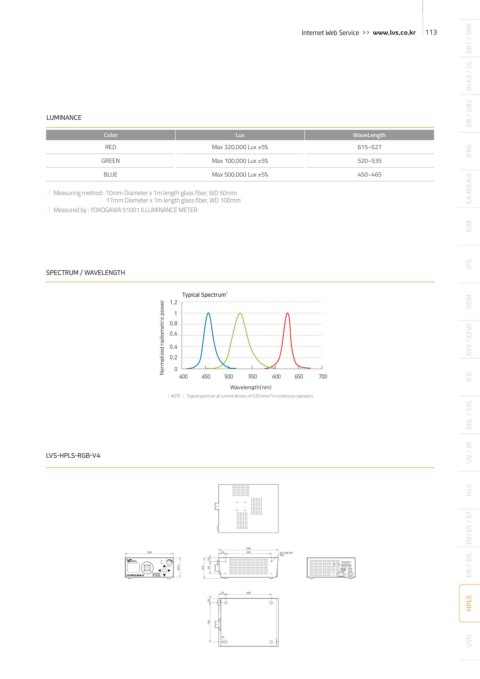

Page 113 - LVS2023

DRT / DRF
Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 112 Internet Web Service >> www.lvs.co.kr 113

DLA2 / DL

LVS-HPLS-RGB-V4

Series LUMINANCE Color Lux WaveLength DB / DB2

RED Max 320,000 Lux ±5% 615~627 IFRK
GREEN Max 100,000 Lux ±5% 520~535

RGB LED LIGHT SOURCE BLUE Max 500,000 Lux ±5% 450~465
│ Measuring method : 10mm Diameter x 1m length glass fiber, WD 50mm ILA-R/ILA-S
17mm Diameter x 1m length glass fiber, WD 100mm
│ Measured by : YOKOGAWA 51001 ILLUMINANCE METER
IDM

IFS
SPECTRUM / WAVELENGTH
LVS-HPLS-RGB-V4
Typical Spectrum 1 DDM
1.2
Normalized radiometric power ICFV / ICFV2
1

0.6
The combination of the three color leds(red/green/blue), 0.8
LVS-HPLS- can produce broad array of colors in the RGB color model. 0.4
RGB-V4 Light source dedicated to using glass optical fibers 0.2
It prevents deterioration of organic materials because it does not have harmful 0
550
wavelengths like the halogen, metal halide and xenon lighting 400 450 500 Wavelength(nm) 600 650 700 IFD
Uses RS-232C and Ethernet commnuication │ NOTE │ Typical spectrum at current density of 0.35 A/mm in continuous operation.
2
Each color LED can be adjusted in 256 levels.
Digital dimming control SHL / SVL
All three colors can be controlled separately and mixed together
System errors in over current/heat and fan detection
UV / IR
LVS-HPLS-RGB-V4

SPECIFICATION
HLS
Model Name LVS-HPLS-RGB-V4
Intensity Method Constant Current
Number of Color RED, GREEN, BLUE EN / ES / ET

Intensity Step 0 ~ 255 Step
295
Supported Optical Fiber Glass Optical Fiber O.F Ø10mm 239 35 225 2X4-M3 TAP
DP4
COARSE
X10 19
01 14 RED_COM RED 02 15 BLUE_COM BLUE 03 16 GREEN_COM GREEN
EXTERNAL PORT DN / DS
Display TFT - LCD (2.8", 3240 x 240) KNOB SWITCH 96.5 103 60 02 RX 03 TX 05 GND GRN : ACT YLW : LINK
PUSH TO LOCK
RS-232C
100 - 240V~ 50 / 60Hz 4 - 2.2A ETHERNET
OFF ON
POWER
Communication(PC Interface) Internal , External[ RS-232C, Ethernet(10/100base-T)
Operating Environment Temperature 0℃ ~ 40℃ , Humidity 20 ~ 80% RH(with no condensation) 35 225
22 HPLS
Storage Environment Temperature -15℃ ~ 60℃ , Humidity 20 ~ 85% RH(with no condensation)
Input Voltage AC 115~230V, 50/60Hz 195
Size (W x H x D) 239 x 103 x 295
UVH
