DLA2 / DL

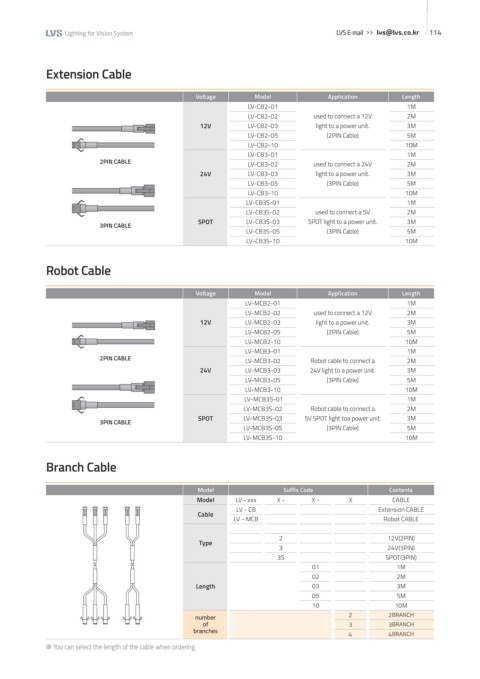

Extension Cable Normal Extension Cable

Voltage Model Application Length Item
LV-CB2-01 1M
LV-CB2-02 used to connect a 12V 2M connector Receptacle : SMR-02V-B, SMR-03V-B DB / DB2
12V LV-CB2-03 light to a power unit. 3M Plug : SMP-02V-B, SMP-03V-B
LV-CB2-05 (2PIN Cable) 5M
LV-CB2-10 10M Current Rating 3A Max (continuous use)
LV-CB3-01 1M IFRK
2PIN CABLE LV-CB3-02 used to connect a 24V 2M Voltage Rating 250V AC, DC Max
24V LV-CB3-03 light to a power unit. 3M
LV-CB3-05 (3PIN Cable) 5M Maximum Power 12V : 36W , 24V : 72W , 48V : 144W
LV-CB3-10 10M ILA-R/ILA-S
LV-CB3S-01 1M Insulation Resistance 500M Ω min
LV-CB3S-02 used to connect a 5V 2M Recommended Max Length Under 10m
SPOT LV-CB3S-03 SPOT light to a power unit. 3M
3PIN CABLE IDM
LV-CB3S-05 (3PIN Cable) 5M
LV-CB3S-10 10M

Robot Cable High Flexible Extension Cable IFS

Voltage Model Application Length Item
LV-MCB2-01 1M DDM
LV-MCB2-02 used to connect a 12V 2M connector Receptacle : SMR-02V-B, SMR-03V-B
12V LV-MCB2-03 light to a power unit. 3M Plug : SMP-02V-B, SMP-03V-B
LV-MCB2-05 (2PIN Cable) 5M
LV-MCB2-10 10M Current Rating 3A Max (continuous use) ICFV / ICFV2
LV-MCB3-01 1M
2PIN CABLE LV-MCB3-02 Robot cable to connect a 2M Voltage Rating 300V AC, DC Max
24V LV-MCB3-03 24V light to a power unit. 3M
LV-MCB3-05 (3PIN Cable) 5M Maximum Power 12V : 36W , 24V : 72W , 48V : 144W IFD
LV-MCB3-10 10M
LV-MCB3S-01 1M Insulation Resistance Min. 10000MΩ. km
LV-MCB3S-02 Robot cable to connect a 2M
SPOT LV-MCB3S-03 5V SPOT light toa power unit. 3M Minimum Bending radius Overall diameter X 7.5 (mm) SHL / SVL
3PIN CABLE
LV-MCB3S-05 (3PIN Cable) 5M
LV-MCB3S-10 10M 6Million Life Cycles
U-Bending (Bending radius : Cable diameter x 6, No. of Bedings : 60Cycle/min, Speed : 2.0 m/s,
Acceleration : 2G(20m/s², Stroke Length : 1500mm) UV / IR
Branch Cable

Recommended Max Length Under 10m
Model Suffix Code Contents HLS
Model LV - xxx X - X - X CABLE
LV - CB Extension CABLE
Cable
LV - MCB Robot CABLE

2 12V(2PIN) EN / ES / ET
Type
3 24V(3PIN)
3S SPOT(3PIN)
01 1M DN / DS
02 2M
Length 03 3M
05 5M
10 10M HPLS
2 2BRANCH
number
of 3 3BRANCH
branches 4 4BRANCH
※ You can select the length of the cable when ordering. UVH
