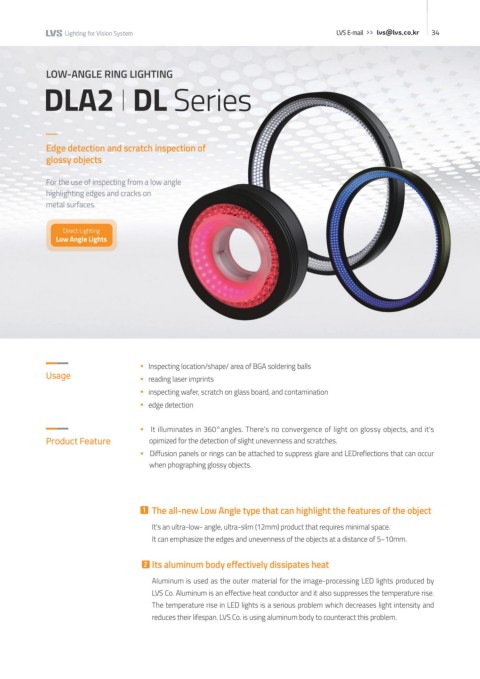

LOW-ANGLE RING LIGHTING DLA2 / DL
DLA2 DL Series
│
DB / DB2

Edge detection and scratch inspection of IFRK
glossy objects

For the use of inspecting from a low angle
highlighting edges and cracks on ILA-R/ILA-S
metal surfaces.

Direct Lighting IDM
Low Angle Lights

IFS

Sample image
DDM
DLA2│DL series >>>

ICFV / ICFV2

● Inspecting location/shape/ area of BGA soldering balls
Usage ● reading laser imprints IFD
● inspecting wafer, scratch on glass board, and contamination
● edge detection SHL / SVL

● It illuminates in 360°angles. There's no convergence of light on glossy objects, and it's Laser engraving reading and Imprint and laser imprinting Inspect connector pins
surface inspection
Product Feature opimized for the detection of slight unevenness and scratches.
● Usage - BGA soldering ball location/shape/ and area inspection.
● Diffusion panels or rings can be attached to suppress glare and LEDreflections that can occur - Laser imprint recognition UV / IR
when phographing glossy objects. - Inspecting of scratches and contaminations on glass, pcbs and wafers
- Edge detection
● Features It is optimized for the detection of slight unevenness and scratches.
HLS

1 The all-new Low Angle type that can highlight the features of the object Illumination Structure DLA2│DL series

It's an ultra-low- angle, ultra-slim (12mm) product that requires minimal space. EN / ES / ET
It can emphasize the edges and unevenness of the objects at a distance of 5~10mm.

Flexible Boards are fixed in
2 Its aluminum body effectively dissipates heat the desired angle to inspect DN / DS
Aluminum is used as the outer material for the image-processing LED lights produced by objects from a low angle.
LVS Co. Aluminum is an effective heat conductor and it also suppresses the temperature rise.
The temperature rise in LED lights is a serious problem which decreases light intensity and HPLS
reduces their lifespan. LVS Co. is using aluminum body to counteract this problem.
