Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 36 Internet Web Service >> www.lvs.co.kr 37 DRT / DRF

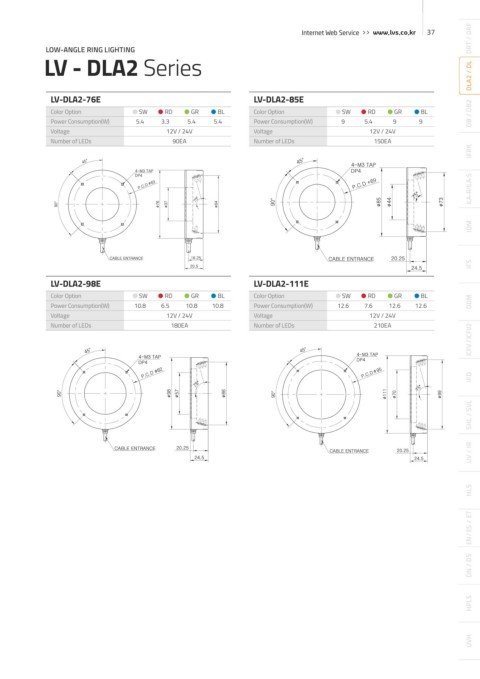

LOW-ANGLE RING LIGHTING LOW-ANGLE RING LIGHTING
LV - DLA2 Series LV - DLA2 Series
DLA2 / DL
LV-DLA2-77D LV-DLA2-97D LV-DLA2-76E LV-DLA2-85E
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 7.2 4.4 7.2 7.2 Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 9 5.4 9 9
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 90EA Number of LEDs 120EA Number of LEDs 90EA Number of LEDs 150EA
IFRK
ILA-R/ILA-S
IDM
IFS
LV-DLA2-115D LV-DLA2-130D LV-DLA2-98E LV-DLA2-111E
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 12.6 7.6 12.6 12.6 Power Consumption(W) 14.4 8.7 14.4 14.4 Power Consumption(W) 10.8 6.5 10.8 10.8 Power Consumption(W) 12.6 7.6 12.6 12.6 DDM
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 210EA Number of LEDs 240EA Number of LEDs 180EA Number of LEDs 210EA
ICFV / ICFV2
IFD
SHL / SVL
UV / IR
LV-DLA2-143D LV-DLA2-56E
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 16.2 9.8 16.2 16.2 Power Consumption(W) 3.6 2.2 3.6 3.6 HLS
Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 270EA Number of LEDs 60EA
