BAR LIGHTING DLA2 / DL
DB DB2 Series
│
DB / DB2

High-density, Compact Bar Lights IFRK

Ultra high-intensity LEDs are arrayed to create optimal
lights for inspecting LCD characters and labels.
ILA-R/ILA-S

Direct Lighting
Bar Lights
IDM

Optional Bracket IFS
Available

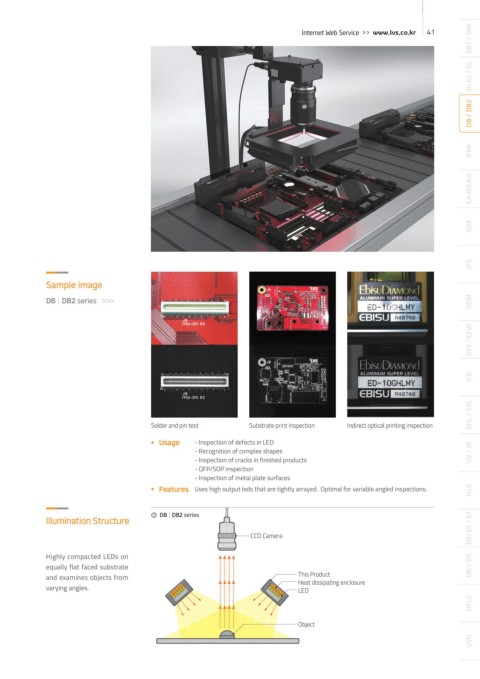

Sample image
DDM
DB│DB2 series >>>

ICFV / ICFV2

● LV-DB / DB2 Series
Usage · Inspection of defects in LCD IFD
· Recognition of complex shapes
· Inspection of cracks in finished products
· Substitution for fluorescent lights SHL / SVL
· Recognition of shapes of electrical parts and measurement Solder and pin test Substrate print inspection Indirect optical printing inspection
· QFP/SOP inspection
· Inspection of metal plate surfaces ● Usage - Inspection of defects in LED
- Recognition of complex shapes
· Exterior inspection of ceramic package - Inspection of cracks in finished products UV / IR
- QFP/SOP inspection
- Inspection of metal plate surfaces
● Features Uses high output leds that are tightly arrayed. Optimal for variable angled inspections. HLS

1 The angle of the installing part is adjustable
Product Feature Illumination Structure DB│DB2 series
The angle of the LED arrays can be adjusted independently for multiple purposes. EN / ES / ET
CCD 카메라
The lighting can completely alter the images depending on the angle and direction. CCD Camera
Using this product, you can use direct light, reflected light, or diffused reflected light to obtain Highly compacted LEDs on
the best images whether the object is glossy or lined. equally flat faced substrate DN / DS
본제품oduct
and examines objects from This Pr
Heat dissipating enclosure
특수방열재
2 Focus Angle Characteristics varying angles. LED
LED
The focus angle characteristics of LEDs can be selected according to the distance from the HPLS
objects or the field of view. The WD types are used for uniform viewing of a wide field and the
물체
non-WD types are used for bright viewing of a narrow range. Object
