Page 110 - LVS2023

DRT / DRF
Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 110 Internet Web Service >> www.lvs.co.kr 111

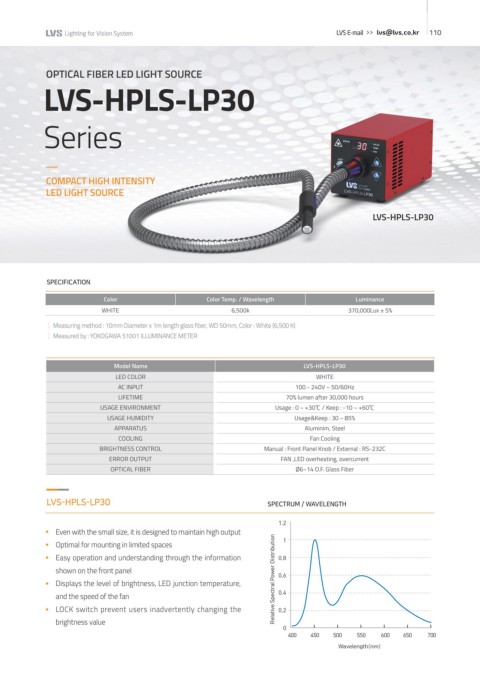

OPTICAL FIBER LED LIGHT SOURCE 150W HIGH POWER LED LIGHT SOURCE DLA2 / DL
LVS-HPLS-LP30 LVS-HPLS-CW150-V2

Series Series DB / DB2

IFRK

COMPACT HIGH INTENSITY DESIGNED TO REPLACE
LED LIGHT SOURCE 250W METAL HALIDE LIGHTS ILA-R/ILA-S

World’s first 4096 step brightness control
LVS-HPLS-LP30
IDM

IFS

SPECIFICATION LVS-HPLS-CW150-V2

Color Color Temp. / Wavelength Luminance DDM
WHITE 6,500k 370,000Lux ± 5%

│ Measuring method : 10mm Diameter x 1m length glass fiber, WD 50mm, Color : White (6,500 K)
SPECIFICATION
│ Measured by : YOKOGAWA 51001 ILLUMINANCE METER ICFV / ICFV2
Model Name LVS-HPLS-CW150-V2
LED COLOR WHITE
Model Name LVS-HPLS-LP30 COLOR TEMP. 6500K°
LED COLOR WHITE DISPLAY TFT LCD 320x240 IFD
AC INPUT 100 - 240V ~ 50/60Hz POWER INPUT 100~230V, 50/60HZ
LIFETIME 70% lumen after 30,000 hours WATTAGE 160W
USAGE ENVIRONMENT Usage : 0 ~ +30℃ / Keep : -10 ~ +60℃ COOLING FAN COOLING
USAGE HUMIDITY Usage&Keep : 30 ~ 85% CASE ALUMINUM SHL / SVL
APPARATUS Aluminim, Steel SUPPORTED OPTICAL FIBER GLASS OPTICAL FIBER O.F. Ø10mm
COOLING Fan Cooling EXTERNAL INPUT RS232C, ETHERNET(10/100base-T),ON/OFF INPUT
BRIGHTNESS CONTROL Manual : Front Panel Knob / External : RS-232C BRIGHTNESS LEVEL STEPS 4096 STEP DIGITAL CONTROL UV / IR
ERROR OUTPUT FAN ,LED overheating, overcurrent
OPTICAL FIBER Ø6~14 O.F. Glass Fiber

HLS
LVS-HPLS-LP30 SPECTRUM / WAVELENGTH LVS-HPLS-CW150-V2 SPECTRUM / WAVELENGTH

1.2
Even with the small size, it is designed to maintain high output ● Single LED light source output above 2million lux 1.2 EN / ES / ET
Optimal for mounting in limited spaces 1 ● Live led junction and critical temp. monitoring system 1
Easy operation and understanding through the information 0.8 ● Automated cooling fan speed adjustment 0.8
shown on the front panel 0.6 ● Efficient cooling system 0.6 DN / DS
Displays the level of brightness, LED junction temperature, Relative Spectral Power Distribution ● Stable output through high precision analog circuit Normalized Spectral Response
and the speed of the fan 0.4 0.4
LOCK switch prevent users inadvertently changing the 0.2 0.2 HPLS
brightness value 0
0 375 425 475 525 575 625 675 725 775
400 450 500 550 600 650 700
Wavelength(nm) UVH
Wavelength(nm)
