Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 44 Internet Web Service >> www.lvs.co.kr 45 DRT / DRF
BAR LIGHTING BAR LIGHTING
LV - DB2 Series LV - DB2 Series
DLA2 / DL

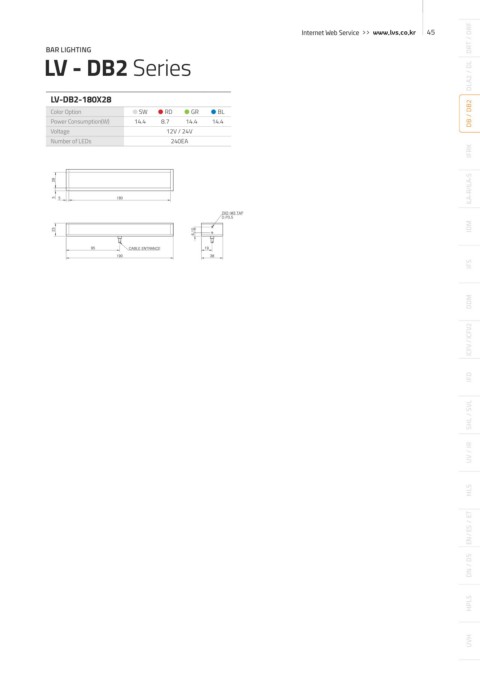

LV-DB2-240X22-V3 LV-DB2-68X28 LV-DB2-180X28
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 16.2 8.1 16.2 16.2 Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 14.4 8.7 14.4 14.4
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 270EA Number of LEDs 90EA Number of LEDs 240EA
IFRK
ILA-R/ILA-S
IDM
IFS
LV-DB2-90X28 LV-DB2-113X28
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DDM
Power Consumption(W) 7.2 4.4 7.2 7.2 Power Consumption(W) 9 5.4 9 9
Voltage 12V / 24V Voltage 12V / 24V
ICFV / ICFV2
Number of LEDs 120EA Number of LEDs 150EA
IFD
SHL / SVL
UV / IR
LV-DB2-135X28 LV-DB2-158X28
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL HLS
Power Consumption(W) 10.8 6.5 10.8 10.8 Power Consumption(W) 12.6 7.6 12.6 12.6
Voltage 12V / 24V Voltage 12V / 24V
EN / ES / ET
Number of LEDs 180EA Number of LEDs 210EA
DN / DS
HPLS
UVH
