BAR LIGHTING BAR LIGHTING

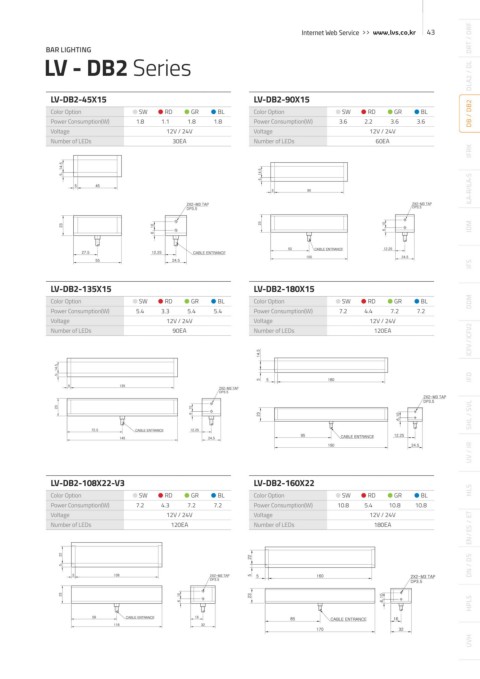

LV - DB Series LV - DB2 Series
DLA2 / DL

LV-DB-29X16-V2 LV-DB-55X16-V2 LV-DB2-45X15 LV-DB2-90X15

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 1.1 0.6 1.1 1.1 Power Consumption(W) 2.2 1.1 2.2 2.2 Power Consumption(W) 1.8 1.1 1.8 1.8 Power Consumption(W) 3.6 2.2 3.6 3.6
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 18EA Number of LEDs 36EA Number of LEDs 30EA Number of LEDs 60EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-DB-82X16-V2 LV-DB-55X24-V2 LV-DB2-135X15 LV-DB2-180X15
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DDM
Power Consumption(W) 3.3 1.7 3.3 3.3 Power Consumption(W) 3.6 1.8 3.6 3.6 Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 7.2 4.4 7.2 7.2
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
ICFV / ICFV2
Number of LEDs 54EA Number of LEDs 60EA Number of LEDs 90EA Number of LEDs 120EA

IFD

SHL / SVL

UV / IR

LV-DB-82X24-V2 LV-DB-108X24-V2 LV-DB2-108X22-V3 LV-DB2-160X22
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL HLS
Power Consumption(W) 5.4 2.7 5.4 5.4 Power Consumption(W) 7.2 3.6 7.2 7.2 Power Consumption(W) 7.2 4.3 7.2 7.2 Power Consumption(W) 10.8 5.4 10.8 10.8
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
EN / ES / ET
Number of LEDs 90EA Number of LEDs 120EA Number of LEDs 120EA Number of LEDs 180EA
