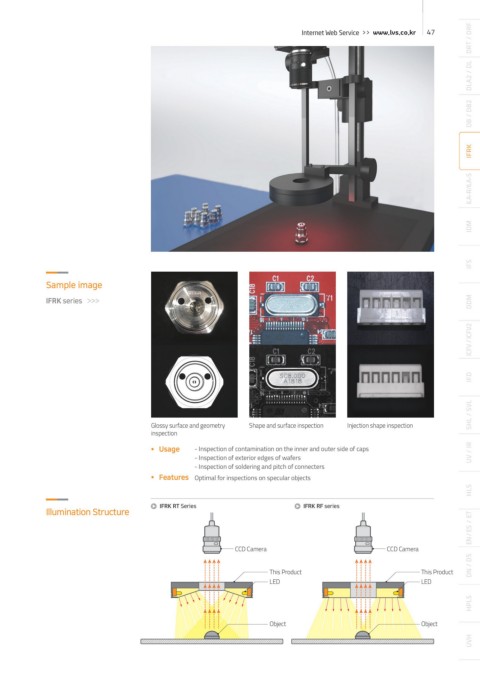

INDIRECT RING LIGHTING DLA2 / DL
IFRK Series

DB / DB2

Overhead uniform radiation of diffused light
IFRK
Overhead radiation of diffused light makes it possible to
radiate uniformly without the glare from LEDs or shadows
ILA-R/ILA-S

Indirect Lighting
Ring Lights
IDM

IFS

Sample image
DDM
IFRK series >>>

ICFV / ICFV2

● Inspection of contamination on the inner and outer side of caps
Usage ● Inspection of exterior edges of wafers IFD
● Inspection of soldering and pitch of connecters
SHL / SVL

● It illuminates uniformly without any stains from glossy objects Glossy surface and geometry Shape and surface inspection Injection shape inspection
inspection
Product Feature ● It can get optimal results from halation, and is fit for objects like metal surface
● Usage - Inspection of contamination on the inner and outer side of caps
- Inspection of exterior edges of wafers UV / IR
- Inspection of soldering and pitch of connecters
1 Slim flat ring in edge-light type ● Features Optimal for inspections on specular objects

LED is arrayed in the vertical flexible board and is attached near the edge-light diffuser HLS
plate. The direct lighting from LED can go inside to improve efficiency. Also, the surface is IFRK RT Series IFRK RF series
reflector-coated to diffuse light uniformly on the edge-light diffuser plate, making more Illumination Structure
uniform lighting possible. EN / ES / ET

CCD Camera CCD Camera
CCD 카메라
CCD 카메라
DN / DS
This Product This Product
본제품
본제품
LED LED
LED
LED
HPLS
Object Object
물체
물체
UVH
