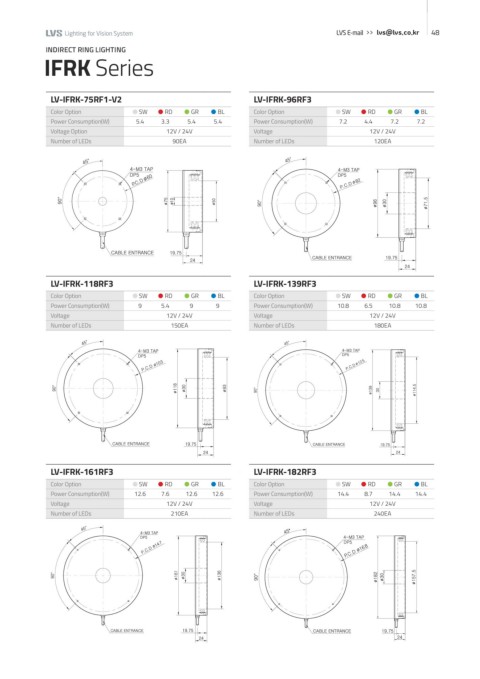

Page 48 - LVS2023

Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 48 Internet Web Service >> www.lvs.co.kr 49 DRT / DRF

INDIRECT RING LIGHTING INDIRECT RING LIGHTING
IFRK Series IFRK Series
DLA2 / DL

LV-IFRK-75RF1-V2 LV-IFRK-96RF3 LV-IFRK-204RF LV-IFRK-75RT1-V3

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 5.4 3.3 5.4 5.4 Power Consumption(W) 7.2 4.4 7.2 7.2 Power Consumption(W) 16.2 9.8 16.2 16.2 Power Consumption(W) 5.4 3.3 5.4 5.4
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 90EA Number of LEDs 120EA Number of LEDs 270EA Number of LEDs 90EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-IFRK-118RF3 LV-IFRK-139RF3 LV-IFRK-96RT3-V3 LV-IFRK-118RT-V3
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 9 5.4 9 9 Power Consumption(W) 10.8 6.5 10.8 10.8 Power Consumption(W) 7.2 4.4 7.2 7.2 Power Consumption(W) 9 5.4 9 9 DDM
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 150EA Number of LEDs 180EA Number of LEDs 120EA Number of LEDs 150EA
ICFV / ICFV2

IFD

SHL / SVL

UV / IR

LV-IFRK-161RF3 LV-IFRK-182RF3 LV-IFRK-139RT3-V3 LV- IFRK-161RT3-V3
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 12.6 7.6 12.6 12.6 Power Consumption(W) 14.4 8.7 14.4 14.4 Power Consumption(W) 10.8 6.5 10.8 10.8 Power Consumption(W) 12.6 7.6 12.6 12.6 HLS
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 210EA Number of LEDs 240EA Number of LEDs 180EA Number of LEDs 210EA
EN / ES / ET

DN / DS

HPLS

UVH
