Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 70 Internet Web Service >> www.lvs.co.kr 71 DRT / DRF

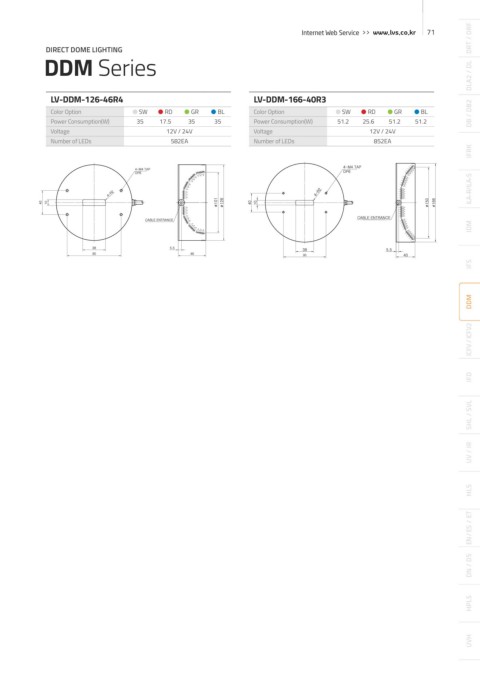

DIRECT DOME LIGHTING DIRECT DOME LIGHTING
DDM Series DDM Series
DLA2 / DL

LV-DDM-85-26R2 LV-DDM-100-30R3 LV-DDM-126-46R4 LV-DDM-166-40R3

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 10.5 5.3 10.5 10.5 Power Consumption(W) 12.6 7.6 12.6 12.6 Power Consumption(W) 35 17.5 35 35 Power Consumption(W) 51.2 25.6 51.2 51.2
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 174EA Number of LEDs 210EA Number of LEDs 582EA Number of LEDs 852EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-DDM-126-21R2 LV-DDM-126-30.5R3
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 9.8 4.9 9.8 9.8 Power Consumption(W) 21.5 10.7 21.5 21.5 DDM
Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 162EA Number of LEDs 354EA
ICFV / ICFV2

IFD

SHL / SVL

UV / IR

LV-DDM-126-44.5R3 LV-DDM-126-46R3
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 35.3 17.7 35.3 35.3 Power Consumption(W) 32.8 16.4 32.8 32.8 HLS
Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 588EA Number of LEDs 546EA
