Even illumination on reflective objects
IFRK
Bright and even coaxial illumination across the entire
field of view inspects defects or cracks of mirror-finish objects.
ILA-R/ILA-S

Indirect Lighting
Coaxial Lights
IDM

IFS

Sample image
DDM

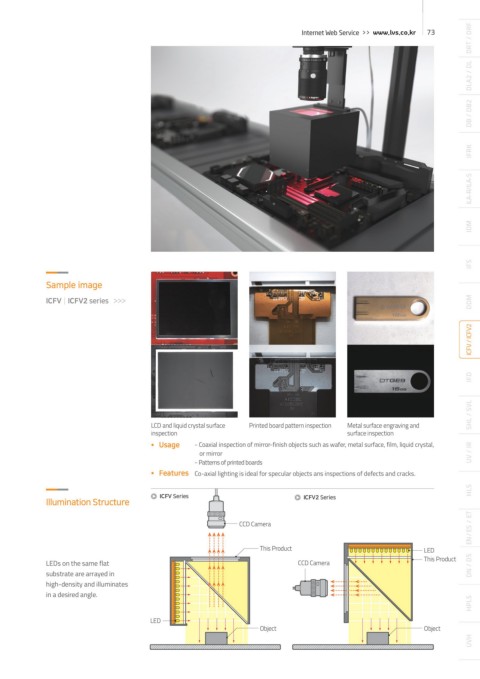

ICFV│ICFV2 series >>>

ICFV / ICFV2

● Coaxial inspection of mirror-finish objects such as wafer, metal surface, film, liquid crystal, or mirror
Usage ● Patterns of printer board IFD

SHL / SVL

LCD and liquid crystal surface Printed board pattern inspection Metal surface engraving and
1 A special half mirror is used inspection surface inspection
Product Feature ● Usage - Coaxial inspection of mirror-finish objects such as wafer, metal surface, film, liquid crystal,
A special half mirror with an antireflection coating or mirror UV / IR
prevents ghostimages. The viewing window - Patterns of printed boards
is protected with safety glass to block dust or ● Features Co-axial lighting is ideal for specular objects ans inspections of defects and cracks.
foreign substances. Lens mounting rings are HLS
used, which makes it possible to mount lights Illumination Structure ICFV Series ICFV2 Series
directly to the threaded part of the lens. This
characteristic makes this product best suited for CCD Camera
CCD 카메라
installation in confined places. EN / ES / ET
▶ Option : Protective safety glass may be mounted. This Product LED
