LVS-ET-0805
● Spot light current controller with 1mA interval current control, up to 999mA
Product Feature ● Up to 8-Channels for illumination DDM
● Led intensity control via external communication and front panel manual control.
(Fine control up to 999 steps) ICFV / ICFV2
● External Communication Device Support 142.5
- Ethernet (TCP/IP & UDP, 10/100 base-T Support), RS232C (Baud-rate : 19,200)
274
● Display device support for System Status and Control 2x4-M3 TAP
50 174 THRU IFD
(Lock LED, Channel LED, 7-Segment LED) ET-0805 * PCB 파손 주의
GRN : ACT
YLW : LINK
● LED On/OFF control via external I/O Port COARSE x10 ERROR LOCK INTENSITY PUSH TO LOCK VOLUME ETHERNET EXPANSION PORT RS-232C CH1 CH2 CH5 CH6
SEL 1 2 3 4 INT MODE EXT 95.5 54 CH3 CH7
ALL 5 6 7 8
ON
CHANNEL CH4 CH8
INVERT
● Lock / Unlock and Auto-Save features LED Illuminator Constant Current Controller P W O E R OFF 16 100 ~ 240VAC 50 / 60Hz LIGHT OUTPUT SHL / SVL
NONE
T
E
F
O
O
N I F
V
/ N
R
1.8A / 115VAC 1A / 230VAC
7 260

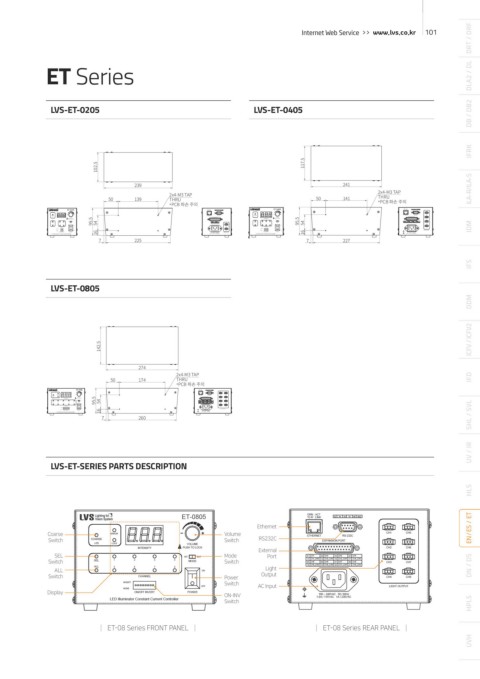

SPECIFICATION
Model Name ET-02xx ET-04xx ET-08xx UV / IR
Intensity Method Constant Current LVS-ET-SERIES PARTS DESCRIPTION
Intensity Step 0~999steps
Number of Channels 2 4 8 HLS
Output Voltage DC 5V / DC 12V / DC 24V
Connector SMP-03V(5Vdc) / SMP-02V(12Vdc) / SMP-03V(24Vdc)
Power 25W(5V), 60W(12V&24V) 25W(5V), 100W(12V&24V) 50W(5V), 200W(12V&24V) Ethernet EN / ES / ET
Maximum Current(Single Channel) 1A Coarse Volume RS232C
Switch
Switch
Maximum Current(All-Channel Used) 1A External
SEL Mode Port
Maximum Power(Single Channel) 5W@5V / 12W@12V / 24W@24V Switch Switch DN / DS
Maximum Power(All-Channel Used) 5W@5V / 12W@12V / 24W@24V ALL Light
Switch Power Output
Communication(PC Interface) External [RS-232C(19,200), Ethernet(10/100base-T)] Switch AC Input
Operating Environment Temperature 0℃~30℃, Humidity 20~80% RH (with no condensation) Display ON-INV
Switch
Storage Environment Temperature -15℃~60℃, Humidity 20~85% RH (with no condensation) HPLS
Input Voltage AC 100~240V, 50/60Hz
▶ Maximum Current(Power) Single Channel : Maximum output when using a single channel. │ ET-08 Series FRONT PANEL │ │ ET-08 Series REAR PANEL │
▶ All-Channel Used : Maximum output per channel when all channels are used. UVH
