Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 106 Internet Web Service >> www.lvs.co.kr 107

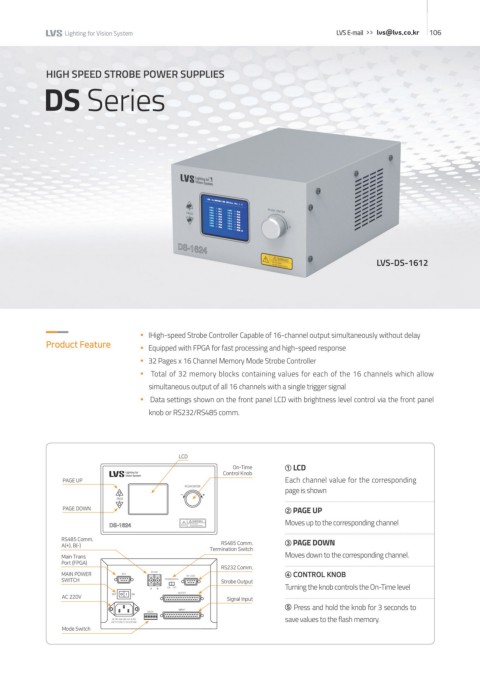

HIGH SPEED STROBE POWER SUPPLIES DS Series DLA2 / DL
DS Series

Item
16 Channels
DS 1 6 Suffix code xx - xx Description DB / DB2
24 24V D.C
Model 48 48V D.C IFRK
200 200W Internal Power
400 400W Internal Power
ILA-R/ILA-S

SPECIFICATION
Model Name DS-16XX IDM
Intensity Method Strobe
Intensity Step(Per Step 1uS) 0~999step
LVS-DS-1612 Number of Channels 16 IFS
Output Voltage DC 24V / DC 48V
Connector D-SUB 37PIN Female
DDM
Power 200W / 400W
Maximum Current(Single Channel) 24V : 5A, 48V : 3.75A
Maximum Current(All-Channel Used) [200W]24V : 0.52A, 48V : 0.26A [400W]24V : 1.04A, 48V : 0.52A
● IHigh-speed Strobe Controller Capable of 16-channel output simultaneously without delay
Product Feature ● Equipped with FPGA for fast processing and high-speed response Maximum Power(Single Channel) 24V : 120W, 48V : 180W ICFV / ICFV2
Maximum Power(All-Channel Used) [200W]12.5W [400W]25W
● 32 Pages x 16 Channel Memory Mode Strobe Controller
Communication(PC Interface) External[RS-232C(19,200), RS-485]
● Total of 32 memory blocks containing values for each of the 16 channels which allow
Operating Environment Temperature 0℃~30℃, Humidity 20-80% RH (with no condensation) IFD
simultaneous output of all 16 channels with a single trigger signal Storage Environment Temperature -15℃~60℃, Humidity 20-85% RH (with no condensation)
● Data settings shown on the front panel LCD with brightness level control via the front panel Input Voltage AC 100-240V, 50/60Hz
SHL / SVL
knob or RS232/RS485 comm.

LVS-DS-16XX UV / IR
LCD
On-Time ① LCD
Control Knob
PAGE UP Each channel value for the corresponding
PUSH ENTER
page is shown HLS
PAGE
PAGE DOWN ② PAGE UP

! WARNING Moves up to the corresponding channel
! ※ Do not open 182
except stakeholders. EN / ES / ET
RS485 Comm. ③ PAGE DOWN
A(+), B(-) RS485 Comm.
Termination Switch
Main Trans Moves down to the corresponding channel. 110 250
Port (FPGA)
RS232 Comm. 2X4-M3 TAP DN / DS
MAIN POWER M/T RS 485 RS-232C ④ CONTROL KNOB
SWITCH 1 6 9 5 TERMINATION 1 5 Strobe Output
6 9
ON OFF Turning the knob controls the On-Time level 60
OUTPUT
AC 220V 1
14 Signal Input 30
⑤ Press and hold the knob for 3 seconds to HPLS
MODE
1 40 170
14
AC 90~264 VAC/47~63Hz save values to the flash memory.
2A/115 VAC/1.1A/230 VAC
Mode Switch
