DRT / DRF
Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 102 Internet Web Service >> www.lvs.co.kr 103

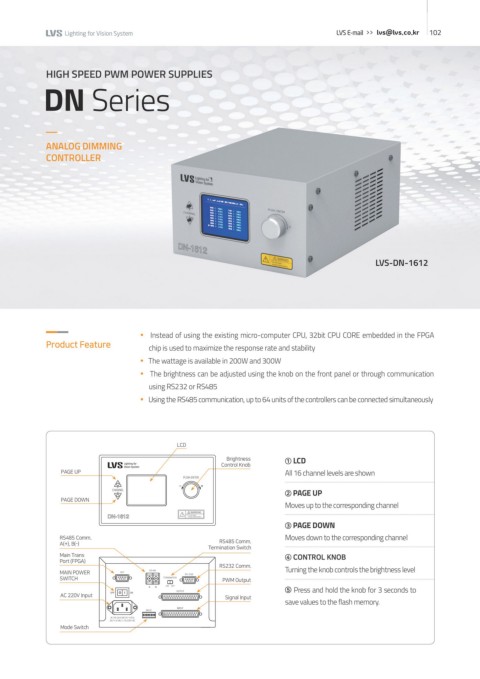

HIGH SPEED PWM POWER SUPPLIES DN Series DLA2 / DL
DN Series

Item
16 Channels
DN 1 6 Suffix code xx - xx Description DB / DB2
1 0 xx xx 10 Channels
ANALOG DIMMING 0 4 xx xx 4 Channels
CONTROLLER Model 12 12V D.C IFRK
24 24V D.C
200 200W Internal Power
ILA-R/ILA-S
400 400W Internal Power

SPECIFICATION

Model Name DN-04xx DN-10xx DN-16xx IDM
Intensity Method PWM
Intensity Step 256-step (0-255)
LVS-DN-1612 Number of Channels 4 10 16 IFS
Output Voltage DC 12V / DC 24V
Connector D-SUB 37PIN Female
Power 200W 200W / 400W
Maximum Current(Single Channel) 4A DDM
[200W]12V : 1.66A, 24V : 0.83A [200W]12V : 1.04A, 24V : 0.52A
Maximum Current(All-Channel Used) 12V : 4A, 24V : 2.08A
● Instead of using the existing micro-computer CPU, 32bit CPU CORE embedded in the FPGA [400W]12V : 3.33A, 24V : 1.66A [400W]12V : 2.08A, 24V : 1.04A
Product Feature chip is used to maximize the response rate and stability Maximum Power(Single Channel) 12V : 48W, 24V : 96W [200W]12.5W ICFV / ICFV2
[200W]20W
● The wattage is available in 200W and 300W Maximum Power(All-Channel Used) 12V : 48W, 24V : 50A [400W]40W [400W]25W
● The brightness can be adjusted using the knob on the front panel or through communication Communication(PC Interface) External[RS-232C(19,200), RS-485] IFD
using RS232 or RS485 Operating Environment Temperature 0℃~30℃, Humidity 20-80% RH (with no condensation)
● Using the RS485 communication, up to 64 units of the controllers can be connected simultaneously Storage Environment Temperature -15℃~60℃, Humidity 20-85% RH (with no condensation)
SHL / SVL
Input Voltage AC 100-240V, 50/60Hz

LCD

Brightness ① LCD UV / IR
Control Knob
PAGE UP All 16 channel levels are shown
PUSH ENTER
② PAGE UP
CHANNEL HLS
PAGE DOWN
Moves up to the corresponding channel
! WARNING
! ※ Do not open
except stakeholders.
③ PAGE DOWN EN / ES / ET
RS485 Comm. Moves down to the corresponding channel
A(+), B(-) RS485 Comm.
Termination Switch
Main Trans ④ CONTROL KNOB
Port (FPGA)
RS232 Comm. DN / DS
MAIN POWER M/T RS 485 RS-232C Turning the knob controls the brightness level
SWITCH 1 6 9 5 TERMINATION 1 5
6 9 PWM Output
ON OFF ⑤ Press and hold the knob for 3 seconds to
OUTPUT
AC 220V Input 1
save values to the flash memory. HPLS
14 Signal Input
MODE
AC 90~264 VAC/47~63Hz
2A/115 VAC/1.1A/230 VAC
Mode Switch
UVH
