DRT / DRF
Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 108 Internet Web Service >> www.lvs.co.kr 109

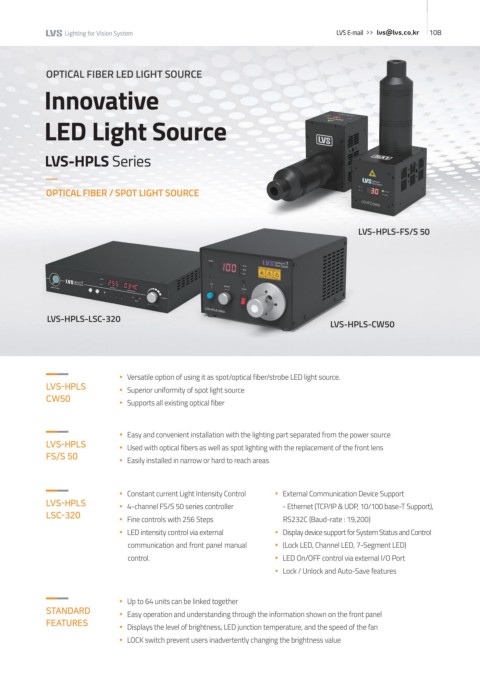

OPTICAL FIBER LED LIGHT SOURCE SPECIFICATION Model Name LVS-HPLS-CW50/LVS-HPLS-FS/S50 DLA2 / DL
Innovative LED Color 70% lumen after 30,000 hours
RED, GREEN, BLUE ,WHITE
AC 90V~264V , 47~63Hz
AC Input
Lifetime
LED Light Source Operating Environment Temperature -15℃~ 60℃, Humidity 20 ~ 85% RH (with no condensation) DB / DB2
Temperature 0℃~ 30℃, Humidity 20 ~ 80% RH (with no condensation)
Storage Environment
Apparatus Aluminim, Steel IFRK
LVS-HPLS Series Cooling Fan Cooling
Brightness Control Manual : Front Panel Knob, External : RS-232C
Error Output FAN ,LED overheating, overcurrent
OPTICAL FIBER / SPOT LIGHT SOURCE Optical Fiber Ø6~14 O.F. Glass Fiber ILA-R/ILA-S
SPECIFICATION
Model Name LVS-HPLS-LSC-320
LVS-HPLS-FS/S 50 Intensity Method Constant Current IDM
Intensity Step 0~255 step
Number of Channels Max 4-Channel
Output Voltage Range DC 2V~9V IFS
Connector 206061-1 (AMP Connector)
Maximum Current Per Channel Max 15A
Communication(PC Interface) Internal , External[ RS-232C, Ethernet(10/100base-T) DDM
Operating Environment Temperature 0℃ ~ 40℃ , Humidity 20 ~ 80% RH(with no condensation)
LVS-HPLS-LSC-320
LVS-HPLS-CW50 Storage Environment Temperature -15℃ ~ 60℃ , Humidity 20 ~ 85% RH(with no condensation)
Input Voltage AC 100~240V, 50/60Hz ICFV / ICFV2
Size (W x H x D) 435 x 401.7x 88
│ Maximum length of the extension cable is 10meters
● Versatile option of using it as spot/optical fiber/strobe LED light source. IFD
LVS-HPLS ● Superior uniformity of spot light source HPLS-CW50 / Color Color Temp. / Wavelength Luminance
CW50 ● Supports all existing optical fiber HPLS-FS/S50 WHITE 6,500k 700,000Lux ± 5%
RED 618nm±5 250,000Lux ± 5% SHL / SVL
GREEN 526nm±3 580,000Lux ± 5%
● Easy and convenient installation with the lighting part separated from the power source BLUE 457nm±5 90,000Lux ± 5%
LVS-HPLS ● Used with optical fibers as well as spot lighting with the replacement of the front lens
FS/S 50 ● Easily installed in narrow or hard to reach areas │ Measuring method : 10mm Diameter x 1m length glass fiber, WD 50mm, Color: White (6,500 K) UV / IR
│ Measured by : YOKOGAWA 51001 ILLUMINANCE METER
SPECTRUM / WAVELENGTH
● Constant current Light Intensity Control ● External Communication Device Support HLS
LVS-HPLS ● 4-channel FS/S 50 series controller - Ethernet (TCP/IP & UDP, 10/100 base-T Support), WHITE RED, GREEN, BLUE
LSC-320 ● Fine controls with 256 Steps RS232C (Baud-rate : 19,200) 1.2 1.1
1.0
● LED intensity control via external ● Display device support for System Status and Control 1 0.9 EN / ES / ET
communication and front panel manual ● (Lock LED, Channel LED, 7-Segment LED) 0.8 0.8
0.7
control. ● LED On/OFF control via external I/O Port Intensity(a.u.) 0.6
● Lock / Unlock and Auto-Save features Relative Spectral Power Distribution 0.6 0.5 DN / DS
0.4
0.4
● Up to 64 units can be linked together 0.2 0.3 HPLS
0.2
STANDARD ● Easy operation and understanding through the information shown on the front panel 0.1
FEATURES ● Displays the level of brightness, LED junction temperature, and the speed of the fan 0 400 450 500 550 600 650 700 0.0
380 420 460 500 540 580 620 660 770
● LOCK switch prevent users inadvertently changing the brightness value Wavelength(nm)
Wavelength(nm) UVH
