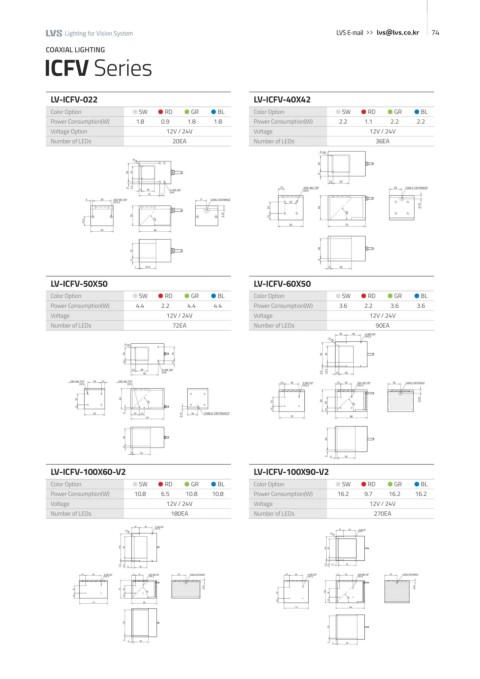

Page 74 - LVS2023

Lighting for Vision System LVS E-mail >> lvs@lvs.co.kr 74 Internet Web Service >> www.lvs.co.kr 75 DRT / DRF

COAXIAL LIGHTING COAXIAL LIGHTING
ICFV Series ICFV Series
DLA2 / DL

LV-ICFV-022 LV-ICFV-40X42 LV-ICFV-120X100 LV-ICFV-150X100

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 1.8 0.9 1.8 1.8 Power Consumption(W) 2.2 1.1 2.2 2.2 Power Consumption(W) 21.6 13 21.6 21.6 Power Consumption(W) 27 16.2 27 27
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 20EA Number of LEDs 36EA Number of LEDs 360EA Number of LEDs 450EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-ICFV-50X50 LV-ICFV-60X50 LV-ICFV-150X120 LV-ICFV-210X200
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 4.4 2.2 4.4 4.4 Power Consumption(W) 3.6 2.2 3.6 3.6 Power Consumption(W) 36 21.6 36 36 Power Consumption(W) 67.2 40.3 67.2 67.2 DDM
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 72EA Number of LEDs 90EA Number of LEDs 600EA Number of LEDs 1120EA
ICFV / ICFV2

IFD

SHL / SVL

UV / IR

LV-ICFV-100X60-V2 LV-ICFV-100X90-V2 LV-ICFV-240X200
Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL
Power Consumption(W) 10.8 6.5 10.8 10.8 Power Consumption(W) 16.2 9.7 16.2 16.2 Power Consumption(W) 76.8 46 76.8 76.8 HLS
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 180EA Number of LEDs 270EA Number of LEDs 1280EA
