COAXIAL LIGHTING COAXIAL LIGHTING

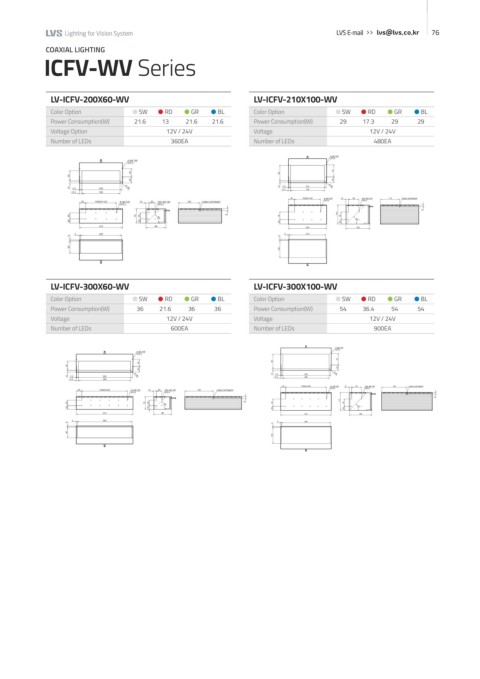

ICFV-WV Series ICFV2 Series
DLA2 / DL

LV-ICFV-200X60-WV LV-ICFV-210X100-WV LV-ICFV2-40X42 LV-ICFV2-50X50

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DB / DB2
Power Consumption(W) 21.6 13 21.6 21.6 Power Consumption(W) 29 17.3 29 29 Power Consumption(W) 2.2 1.1 2.2 2.2 Power Consumption(W) 4.4 2.2 4.4 4.4
Voltage Option 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
Number of LEDs 360EA Number of LEDs 480EA Number of LEDs 36EA Number of LEDs 72EA
IFRK

ILA-R/ILA-S

IDM

IFS

LV-ICFV-300X60-WV LV-ICFV-300X100-WV LV-ICFV2-60X50 LV-ICFV2-100X90

Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL Color Option ● SW ● RD ● GR ● BL DDM
Power Consumption(W) 36 21.6 36 36 Power Consumption(W) 54 36.4 54 54 Power Consumption(W) 5.4 3.2 5.4 5.4 Power Consumption(W) 16.2 9.7 16.2 16.2
Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V Voltage 12V / 24V
ICFV / ICFV2
Number of LEDs 600EA Number of LEDs 900EA Number of LEDs 90EA Number of LEDs 270EA
